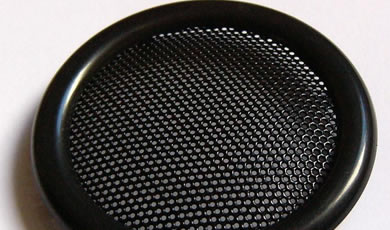

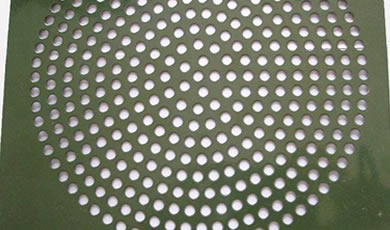

Perforated metals disc can be made with precise mesh openings and not easy for changing shapes. This feature makes perforated sheet popular for making of rigid filter discs, cylinders, filter element support metal pipe and perforated test sieves.
We offers perforated metal discs and perforated plate sieves of a wide range of sizes. The thickness of the disc filter is normally 0.5--2.5mm. Aperture goes from 0.6mm to 10mm for applications of various grades of filtration and sieve meshes. We perforated discs can be made in size as base sieve mesh cloth, then mounted with a frame to form a metal mesh sieve.
We can supply perforated metal disc in round disc, square sheet and special sheet shapes. We also offer woven wire mesh filter disc packs with single layer, double layer or multilayer welded. The disc filters are offered with frame or without for your option. A range of filtration and materials available both for perforated metal discs and wire mesh discs.
Material:
Stainless steel 304/304L/316/316L/321/310, aluminum, brass or alloy.
Processing of perforated discs: Sheet bending, punching and welding

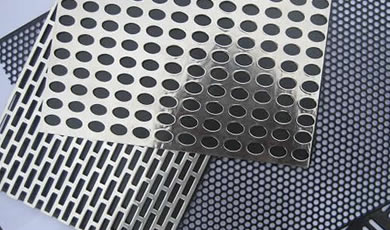

Hole style: Round/square or custom.

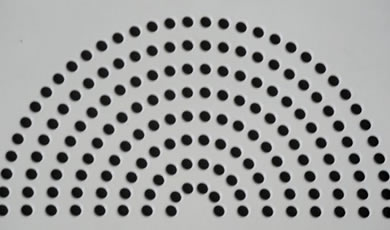

Hole Pattern: The hole are arranged in straight line or stagger line
Mesh Opening: 0.6mm--10mm
Pitch: 1mm--30mm
Perforated Plate thickness: 0.34mm--5mm
Features: Anti-corrosive, anti-abrasive, long-lasting life span, easy application, economical, etc.
Application: Perforated metal discs can be used as filters or test sieves. We also supply perforated metal cylinders or tubes to support the filter media. It can be processed into the forms of tube, cylinder, sheet and conical as filter mesh, filter cartridge, cylinder or filters for filtration in petroleum, chemical, oil cooler, food and pharmacy.
Packaging Detail: The metal discs are wrapped with PE film then cartons --wooden case /wooden pallet for cartridge-- Stretch film then wooden pallet with straps for plate--Special packing can be made according to the clients' request.
